Slim and Lightweight CCD Barcode Scanner CS-1600
High-speed Decoder
Middle Range Barcode
Scanner, USB

30-day money-back guarantee

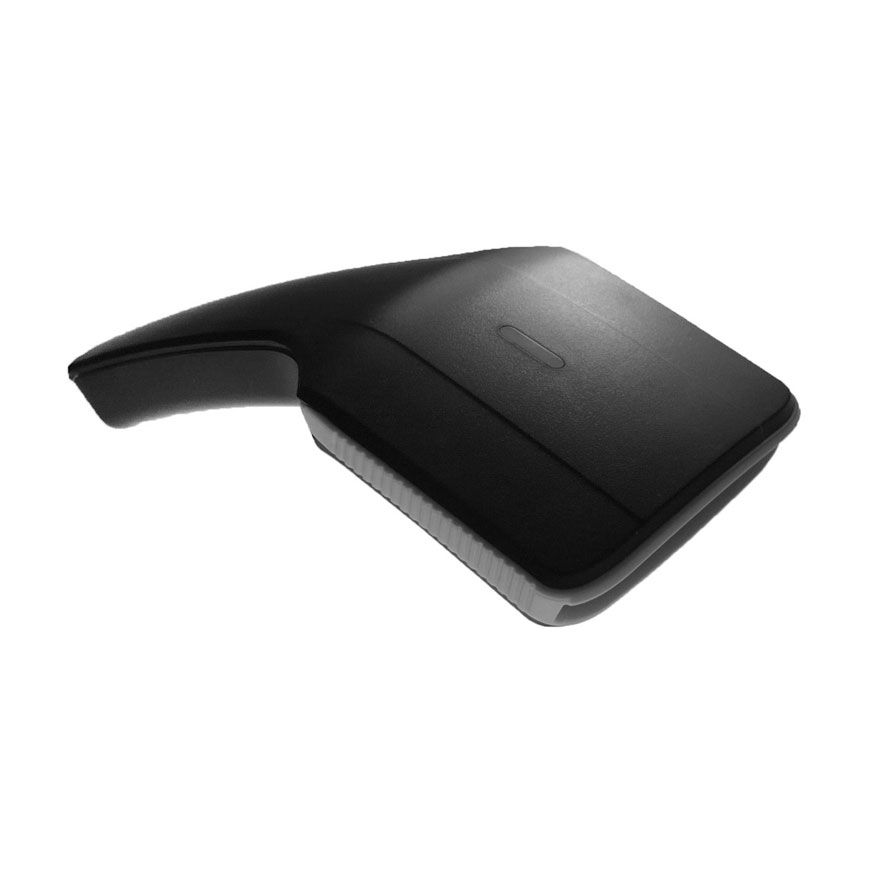

Slim and Lightweight CCD Barcode Scanner CS-1600
Side of Barcode Scanner CS-1600
Side of Barcode Scanner CS-1600

The slim and light-weight CS-1600 CCD barcode scanner provides high-sensitivity 2500 pixels CCD scan engine with a light-weight, easy-to-fit handheld design to make long-time operation be labor less and enhance productivity.

With the outstanding scanning speed and decoding performance, CS-1600 barcode scanner is ideal for most integrated system or machines. The desirable scan rang (up to 18 cm) ensures CS-1600 suitable for groceries, chain store service, inventory data management, and many other interior and office applications. Moreover, the stylish and ergonomic designs make the scanning process easier and more comfortable.

Accurate, reliable and easy to use, CS-1600 is the ideal choice for your daily data accessing applications.


  • Scan Speed: 250 scan/sec
  • Scan Range: up to 18 cm
  • Wave Length: 590 nm
  • Reading PCS: 0.45
  • Full Featured & Full Functions.
  • High-Speed 2500 Pixels CCD Sensor.
  • Interface: Keyboard Wedge, RS-232, USB
Scan Rate250 scans/sec
Sensor Type2500 Pixel Linear CCD
Wavelength590nm, Brilliant Yellow
Depth of Field0 ~ 20 cm
Width of FieldContact Max 6.5CM, long Max 15CM
Contrast Ratio45%
Resolution0.1mm (4 mil)
System InterfaceKeyboard Wedge / RS-232 / USB
IndicatorBuzzer and LED illumination (BLUE)
Readable Bar Code SymbologiesCode 39/32, Full ASCII Code 39, Code 128, Code 11, Interleaved 2/5, Industrial 2/5/IATA, Matrix 2/5, China Postage, Code93, MSI/PLESSEY, Codabar/NW7, Code 4, EAN-8/JAN-13, UPC-A, EAN-13/JAN-13, ISBN/ISSN, RSS-14
Power Input5VDC ± 5%
Power Consumption
Operation Mode260 mA
40 mA (Standby Mode)
Power+5VDC via cable
ColorBlack, White
Shock Resistance1.5m drop onto concrete
ComplianceCE, FCC
Weight150 g (with cable)
Dimension (L x W x H: mm)170.4 x 72.8 x 42.2
Cable Length180 cm
Ambient Light4500 Lux
Operating Temperature0°C ~ 50°C
Operating Humidity20% - 80% RH, non-condensing
Storage Temperature-20°C ~ 60°C
Storage Humidity5% - 95% RH, non-condensing
