Durable Laser Barcode Scanner - GS-6000
Barcode Scanner GS-6000 on the stand
The GS-6000 and GS-6500 Laser Barcode Scanner introduce the fast-scanning laser engine and high-precision scan engine for industrial applications, especially manufacturing process management and logistic/warehouse inventory management.
The ergonomic exterior design enables GS-6000 and GS-6500 easy to grab and operate for longer operating time and, for easy installation, the detachable interface cable can make GS-6000 / GS-6500 change the interface for maintenance or for the change of installations. User doesn't need to purchase different interfaces of barcode scanners anymore, and the reliability of GS-6000 / GS-6500 still ensure fascinating performance of massive scan tasks as well.
Features
- High-Sensitivity Laser Scan Engine.
- Scan Speed: 200 scan/sec (GS-6000) / 100 scan/sec (GS-6500)
- Depth of Field: 3 ~ 55 mm (max) (GS-6000) / 3 ~ 50 cm (max) (GS-6500)
- 32-bit Decoding Technology.
- Ergonomic Design and Durable Housing.
- Interface: RS-232, USB, Keyboard Wedge

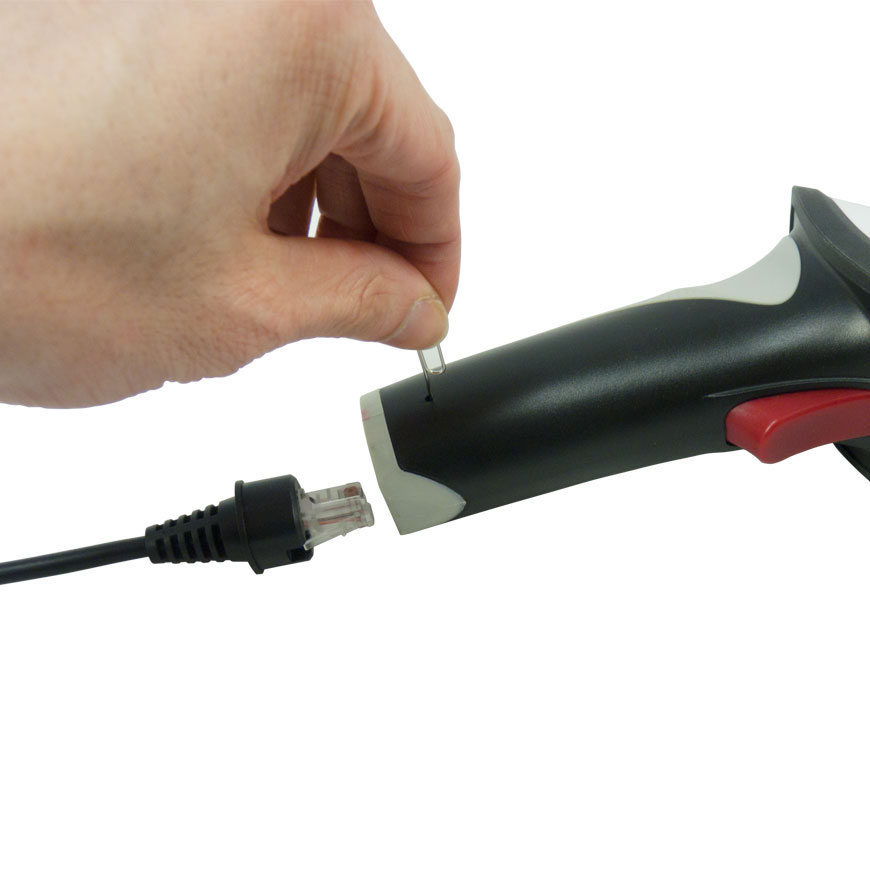

- Exchangeable cable (interface).
Specification
| MODEL | GS-6000 |
|---|---|
| General | |
| Scan Rate | 200 scans/sec |
| Sensor Type | Laser diode |
| Wavelength | 650 nm ± 10 nm |
| Depth of Field | 3 ~ 55 cm max |
| Contrast Ratio | >30% |
| Scan Patten | Single scan line |
| Resolution | 0.1 mm (4 mil) max. |
| System Interface | Keyboard Wedge / RS-232 / USB (USB-HID, USB-UART, HID-POS) |
| Indicator | Buzzer and LED illumination |
| Readable Bar Code Symbologies | EAN-8/JAN-8, EAN-13/JAN-13, UPC-E, Code-128, CODE-93, RSS-Standard, RSS-Limited, RSS-Expanded, CODE-39, Inter-Leaved 2/5, Inter-Standard 2/5, Matrix 2/5, Industrial 2/5, China-Post, MSI, MSI-PLESSEY, CODE-BAR, CODE-11 |
| Auto Scan | No |
| Power Input | 5VDC ± 5% |
| Operation Mode | 50 mA (100 mA max) |
| Power | 5V DC via cable |
| Material | ABS |
| Color | Grey |
| Shock Resistance | 1.5m drop onto concrete |
| Compliance | CE, FCC |
| Weight | approx. 238 g (with cable) |
| Dimension (L x W x H: mm) | 170.5 x 68.5 x 90.6 |
| Cable Length | 180 cm, exchangeable |
| Ambient Light | Daylight 4800 Lux |
| Operating Temperature | -10°C ~ 50°C |
| Storage Temperature | -20°C ~ 60°C |
| Storage Humidity | 5% ~ 95% RH (non-condensing) |
